Lugeon tests

Datalogger for Lugeon test and Lefranc

Lugeon test is used to measure the quantity of water injected into a segment of bored hole under a steady pressure; the value (Lugeon value) is defined as the loss of water in litres per minute and per metre borehole at a pressure of 10 bar.

JET DSP 100 / IR (1 pump)

DAT instruments, JET DSP 100 / I / IR / IRT, datalogger for Grouting, Lugeon tests
  • Measuring and recording of pressure, flow and volume parameters.
  • Measuring and recording of pressure, flow and volume parameters.
  • Display with very big digits, directly on datalogger LCD, of instantaneous pressure, flow rate and volume values.
  • Data downloading to PC, in order to create and print summarizing reports, to obtain easy and quick information files concerning injections carried out and to export data to Microsoft Excel.
  • Possibility to connect to PC in real time.

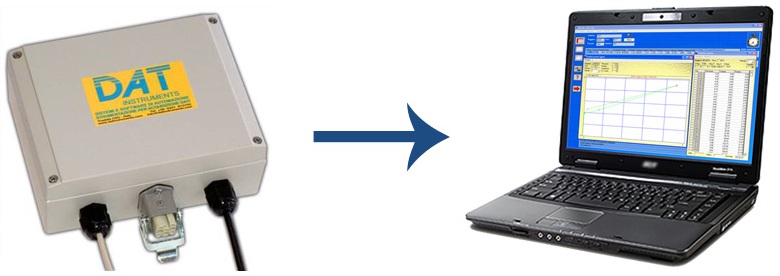

JET FLOW (1 pump)

JET FLOW, sensor for Grouting, Lugeon test, Lefranc test
  • Direct connection to PC in real time.
  • Measuring of pressure, flow and volume parameters.
  • Display, directly on PC monitor, of instantaneous pressure, flow rate and volume values.
  • Display in real time, on PC monitor, of all Lugeon graphics and of summarizing reports.
  • Data recording directly on the PC.

    JET 4000 AME / I (from 1 to 4 pumps)

    DAT instruments, JET 4000 AME / I datalogger for grouting, Lugeon test
    • Measuring and recording of pressure, flow and volume parameters.
    • Display, directly on datalogger LCD, of instantaneous pressure, flow rate and volume values.
    • Display in real time of injection graphics and of summarizing reports.
    • Automatic stop of the injector when maximum established pressure, maximum volume are reached, via GIN method or when achieving maximum duration.
    • Automatic restart of pumping if, after being stopped, pressure goes under pre-established value.
    • Start of the injectors directly from JET 4000 AME / I datalogger keyboard.
    • Sending from a PC of a project with different kinds of tests in order to avoid set up in field.
    • Data downloading to PC, in order to create and print summarizing reports, to obtain easy and quick information files concerning injections carried out and to export data to Microsoft Excel.
    • Possibility to print data immediately, via JET PRINT60 printer which can be installed into the datalogger.
    • Possibility to connect to PC in real time.
    DAT instruments, dataloggers for: Jet grouting - Grouting - Cement injection - TAM grouting - Drilling - MWD - CFA - Deep mixing - Soil mixing - Vibroflotation - Diaphragm walls - Lugeon test - Mineral investigation
    DAT instruments, dataloggers for: Jet grouting - Grouting - Cement injection - TAM grouting - Drilling - MWD - CFA - Deep mixing - Soil mixing - Vibroflotation - Diaphragm walls - Lugeon test - Mineral investigation

    (datalogger automatisms, specifications, accessories and sensors will depend on the model chosen and can be customized according to the chosen product and customersโ€™ specific requirements.)
