Diaphragm walls (dWalls) in subsurface applications (Colombia, 2014)

The installation of a datalogger for dWalls has been necessary in order to carry out consolidation and containment in subsurface applications.

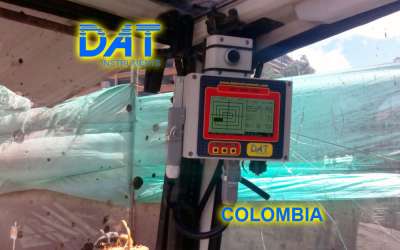

DAT instruments, JET DSP 100 / D, datalogger for Diaphragm walls

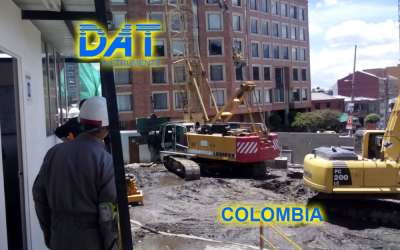

Colombia is evolving towards new opportunities. At the heart of this rebirth there is the capital city, Bogotà. DAT instruments datalogger has been demanded in this development and recovery situation.

The installation of a datalogger for dWalls has been necessary in order to carry out consolidation and containment in subsurface applications.

The Italian company has installed a datalogger specific for diaphragm walls (dWalls) in order to let the Construction Company carry out this work and certificate the progress and the correct execution. JET DSP 100 / D datalogger records dig depth, inclination and deviation of the panel and its rotation, while digging. On printed graphics, it is possible to read even date and hour and work duration. With data recorded by the datalogger, it is possible to certificate the verticality and uniformity of the retaining wall that has been built.

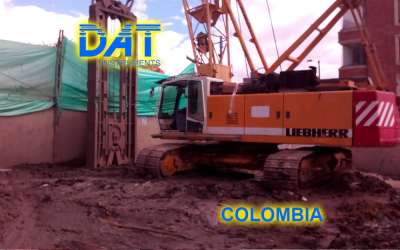

This subsurface application has needed the use of a JET DSP 100 / D datalogger installed on a Liebherr crane with a Stein- Greifer 4209.

Product specifications:

  • JET DSP 100 / D datalogger for diaphragm walls (dWalls)
  • JET WXYZ water proof wireless sensor, on the grab
  • JET DEPTH 2 depth sensor
  • Data transfer system with USB pendrive
  • Easy DAT data management software

Further information about the product:

http://www.datinstruments.com/en/jet-dsp-100-d-datalogger-for-diaphragm-walls-hydromills/
