Data logger for Drilling, MWD

The DAT instruments data logger for drilling and MWD, makes it possible to analyze the geomechanical characteristics of the soil, and measure and record a range of parameters in real time. Meanwhile, the depth based diagraph provides data of different stratigraphic soil levels.

Drilling rig, geotechnical parameters measure, recorder, sensors instrumentation, MWD, DAT instruments, recording while drilling, data logger for drilling and MWD

Data logger for Drilling, MWD

The DAT instruments datalogger for drilling and MWD can measure and display both instantaneous and average recorded parameters, which are displayed directly on the LCD monitor. Graphics for time and depth can also be displayed, alongside data summaries. Other available features include automatic start of the equipment once recording begins, and automatic stop once the required depth is reached. Finally, our dataloggers automatically recognise rod change procedures, and suspend recording during the process.

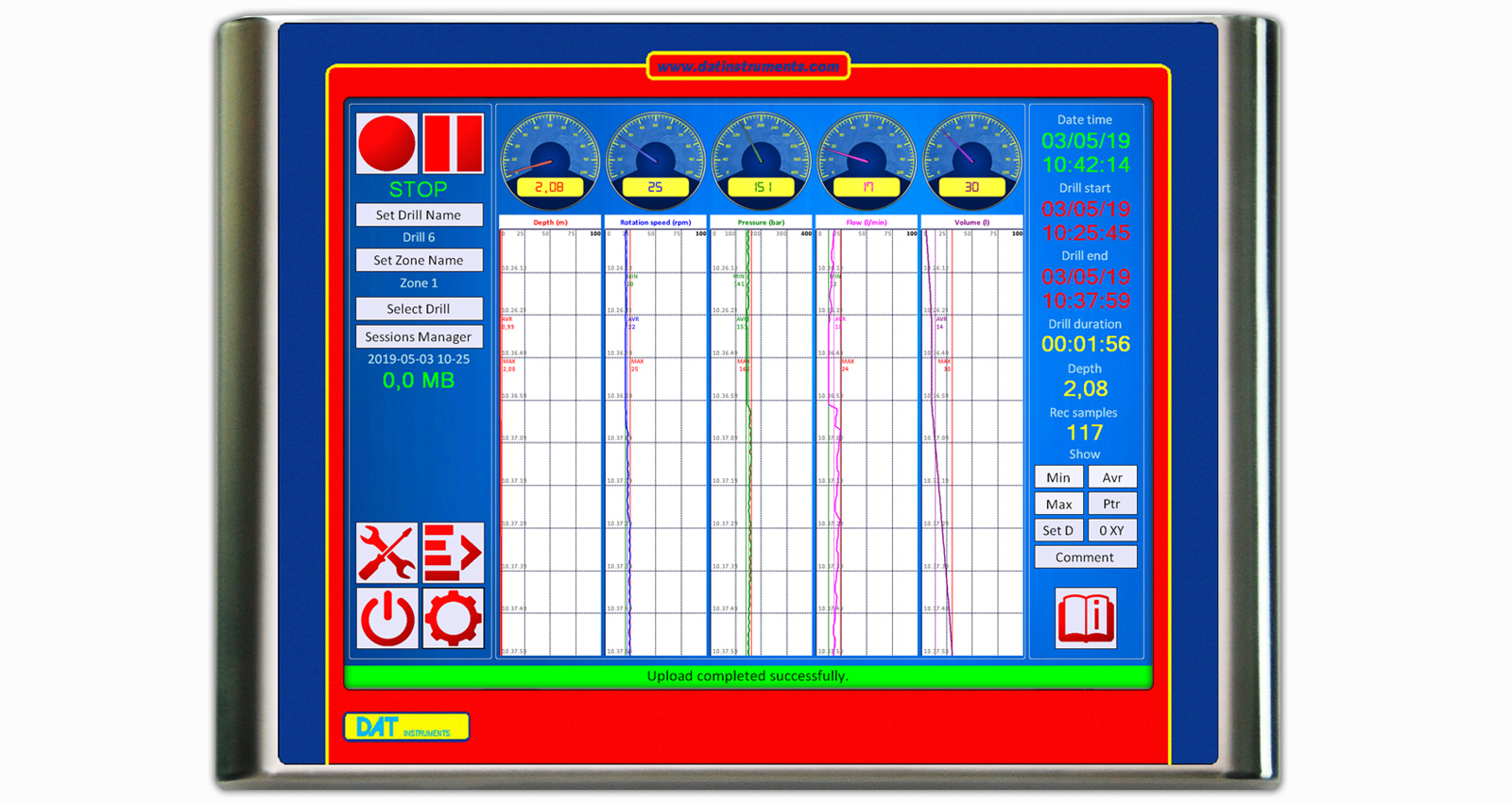

DAT instruments, DAT WideLog datalogger, drilling MWD instrumentation, sensors, geotechnical digitalization certification, data logger for drilling and MWD
DAT instruments, DAT WideLog datalogger for drilling, MWD
DAT instruments, DAT TinyLog datalogger, geotechnical instrumentation sensors digitalization certification, data logger for drilling and MWD
DAT instruments, DAT TinyLog datalogger for drilling, MWD

The following selectable parameters can be measured and recorded:

  • drill depth (JET DEPTH)
  • feed force (JET FORCE)
  • translation rod speed (JET DEPTH)
  • boring rod rotation torque (JET TORQ)
  • boring rod rotation speed (JET ROT)
  • X and Y mast inclination (JET INCL XY)
  • water pressure (JET PRESS)
  • water flow and volume (JET FLOW)
  • date and time of drilling and duration
  • soil relative energy
  • input for GPS receiver

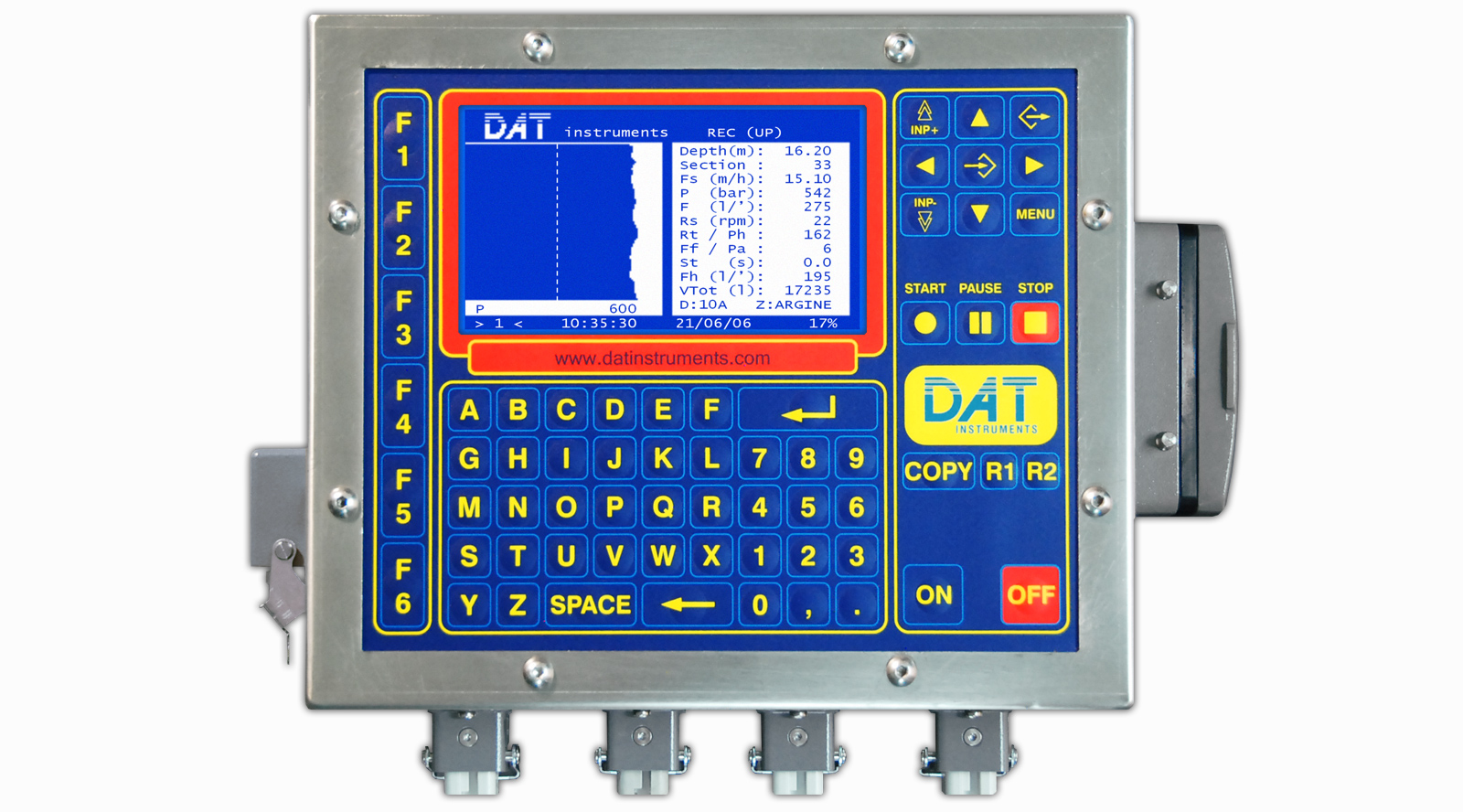

DAT instruments, JET 4000 AME / J datalogger, instrumentation, sensors, geotechnical, digitalization, certification, data logger for drilling and MWD
DAT instruments, JET 4000 AME / J datalogger for drilling, MWD

Furthermore, it is possible to transfer data from datalogger to PC via USB pen-drives, WiFi, Ethernet and 3G/4G. DAT WideLog and DAT TinyLog can also directly export CSV files, compatible with Microsoft Excel or OpenOffice Calc.

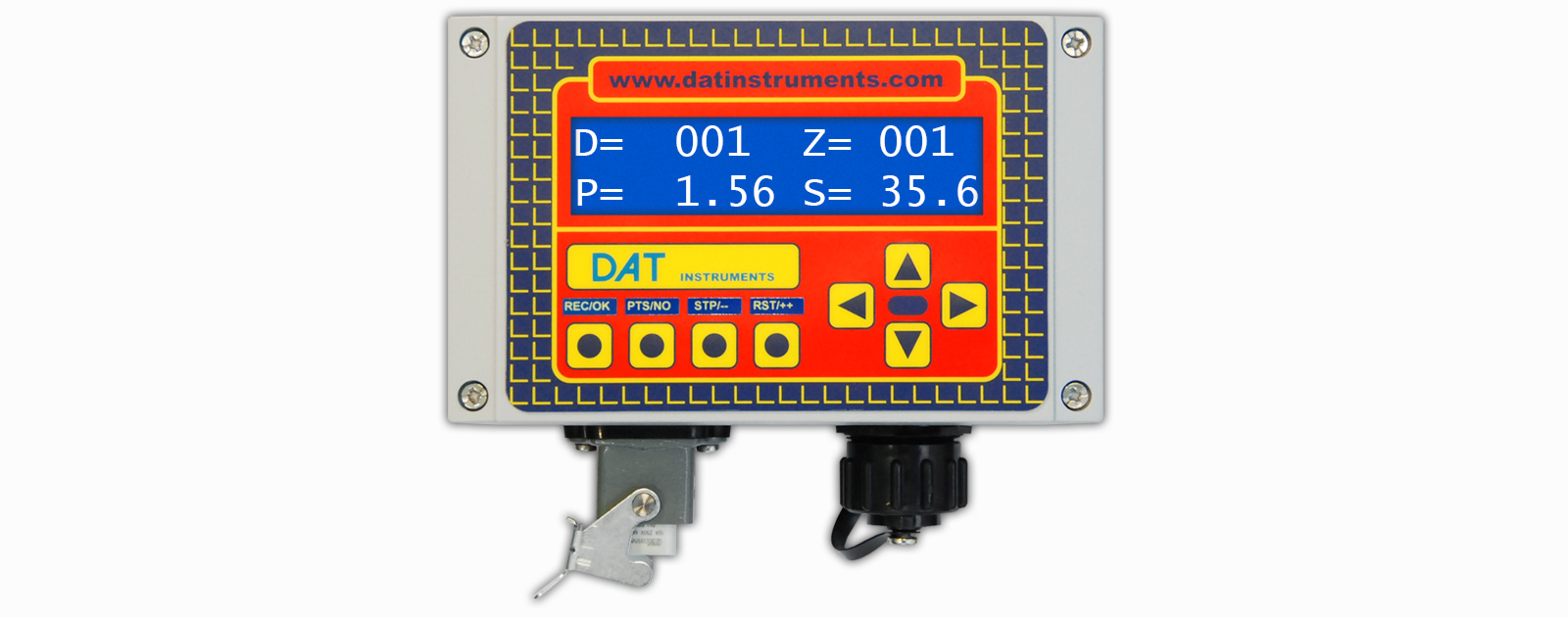

DAT instruments, JET SDP IB, datalogger, instrumentation, MWD drilling parameters recorder, sensors, geotechnical digitalization
DAT instruments, JET SDP IB, cheap datalogger for drilling, MWD

Software for Drilling, MWD

Easy DAT is high-quality software which lets you organize and process data, produce and print graphics and tables. Subscriptions are available at three service levels (Base, Silver and Gold), according to your requirements. All DAT instruments data loggers can be managed via this simple application.

Easy DAT software, drilling MWD, graphic certification digitalization recording
Easy DAT software for drilling, MWD

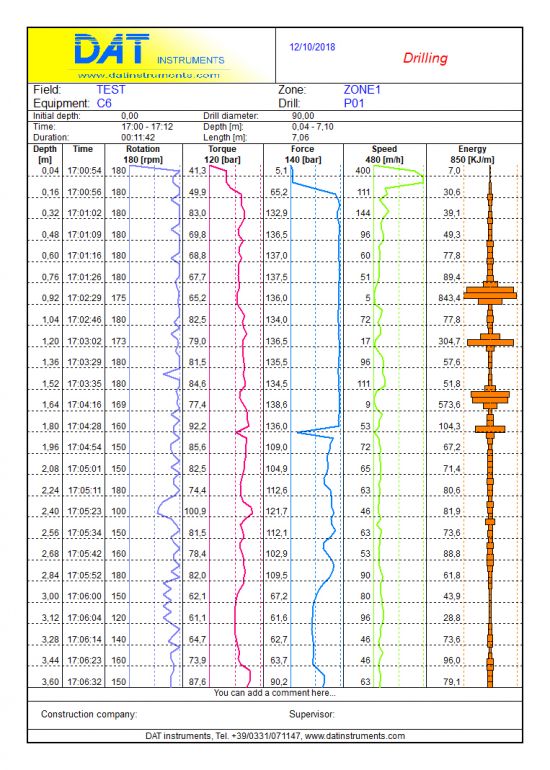

Drillig graphic with DAT instruments datalogger, MWD graphic with DAT instruments data logger

Datalogger automatisms, specifications, accessories and sensors will depend on the model chosen and can be customized according to the chosen product and customersโ€™ specific requirements.

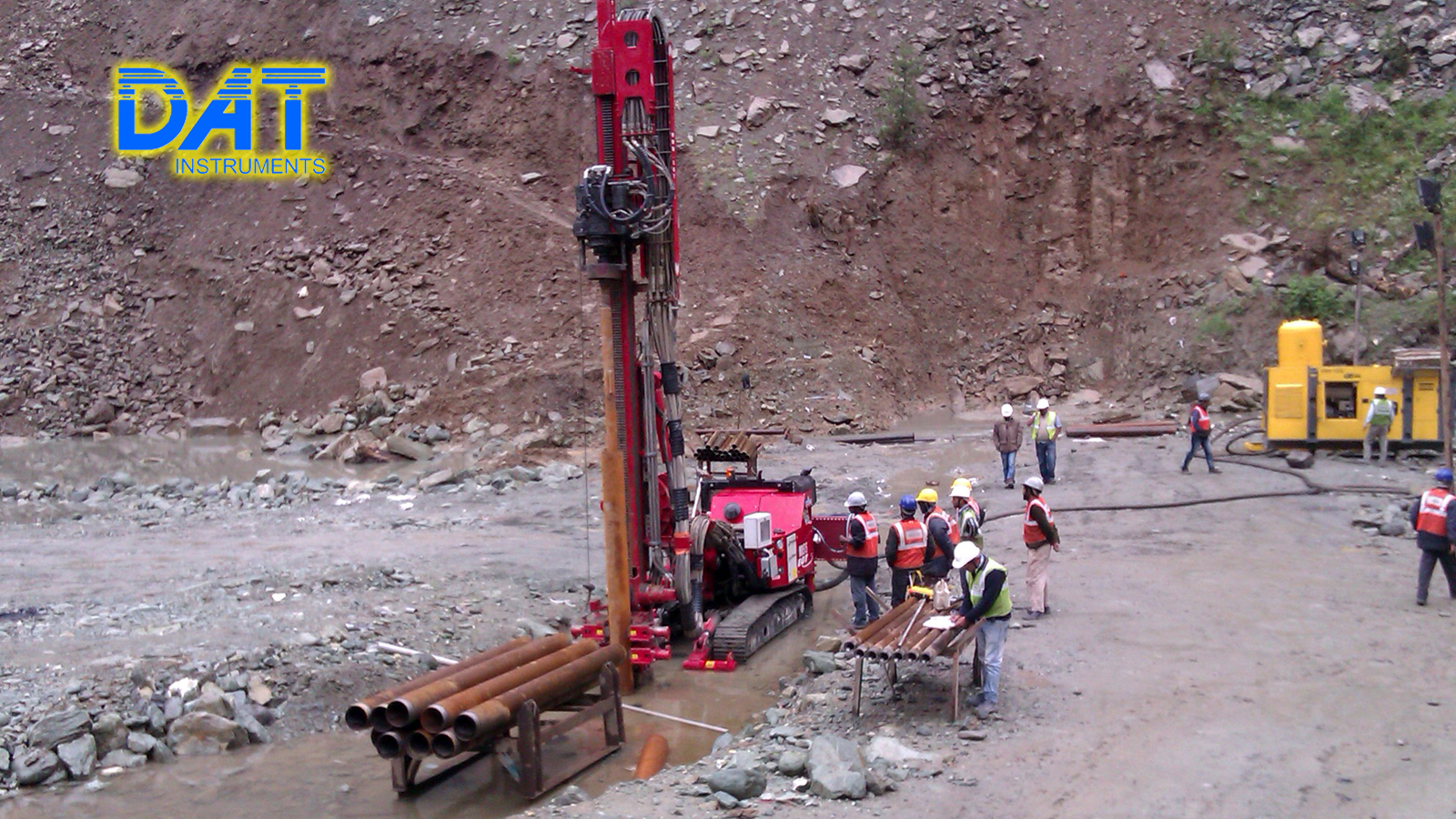

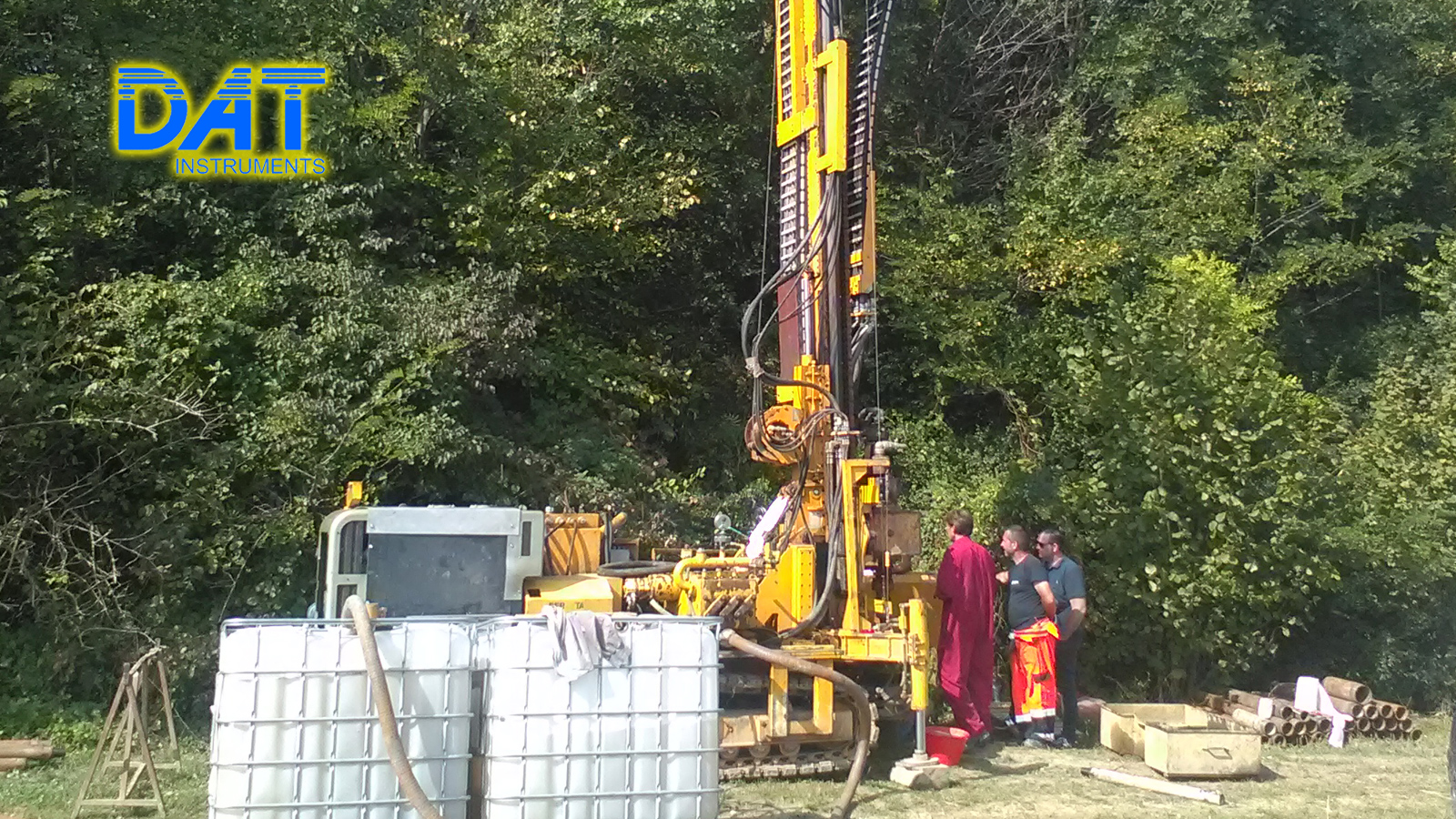

Drilling rig, datalogger, sensors, instrumentation, geotechnical, DAT instruments, MWD, digitalization, recorder
